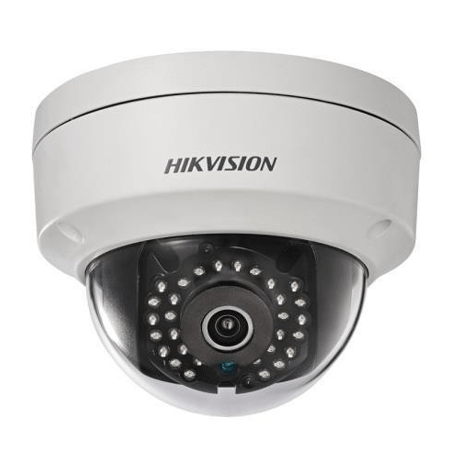

HikVision DS-2CD214WFWD

Description

Camera

• Image Sensor1/3″ Progressive Scan CMOS
• Min. Illumination0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
• Shutter Speed0.028Lux 1/3 s to 1/1@ (F 00,000 s
• Lens2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
• Lens MountM12
• Day &NightIR cut filter with auto switch
• Digital Noise Reduction3D DNR
• Wide Dynamic Range120dB
• P&T rotationPan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°

Compression

• Video CompressionH.264 / MJPEG/H.264+
• H.264 TypeMain Profile
• Video Bit Rate32 Kbps ~ 16 Mbps
• Dual streamsSupport


• Max. Resolution2688×1520
• Max Frame Rate50Hz: Main stream:20fps(2688×1520),25fps(1920×1080), 25fps(1280×720), Sub stream:25fps(352×288),25fps(640×360) 60Hz: Main stream:20fps(2688×1520),30fps(1920×1080),30fps(1280×720),Sub stream: 30fps(352×240),30fps(640×360)
• Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• BLCSupport, zone configurable
• ROI CodecSupport

Network

• Network StorageNAS (Support NFS,SMB/CIFS), ANR
• DetectionIntrusion detection, Line crossing detection, Motion detection, Dynamic analysis
• Face DetectionDetects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info
• Alarm TriggerTampering alarm, Network disconnect, IP address conflict, Storage exception
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
• StandardONVIF (PROFILE S, PROFILE G), ISAPI

Interface

• Communication Interface1 RJ45 10M/100M Ethernet port
• On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128GB
• Alarm interface1x alarm I/O *only for –S models
• Audio interface1x audio I/O *only for –S models
• ResetYes

Wi-Fi * only for –W models

• Wireless StandardsIEEE802.11b, 802.11g, 802.11n
• Frequency Range2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth20/40MHz Support
• Protocols802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
• Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Transfer Rates11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
• Wireless Range50 meters *The performance varies based on actual environment

General

• Operating Conditions30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
• Power SupplyDC12V ± 25%, PoE (802.3af Class3)
• Power ConsumptionMax. 5W
• IR RangeApprox. 30 meters
• MaterialDS-2CD2142FWD-I, DS-2CD2142FWD-IS : Base&Top Cover: Metal DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS: Base: Metal; Front Cover: Plastic
• Ingress ProtectionIP67
• Impact ProtectionIK10
• DimensionsΦ111 × 82 (4.4” × 3.2”)
• Weight500g (1.1lbs)
